OUR FORKLIFTS & ACCESS EQUIPMENT

Access Equipment

View our elevated work platforms (EWP) and access equipment for hire for all your working at height tasks or where accessibility is an issue. Regardless of whether the job is big or small, we have an elevated work platform to suit most industries including building and construction, maintenance, warehousing, retail and more.

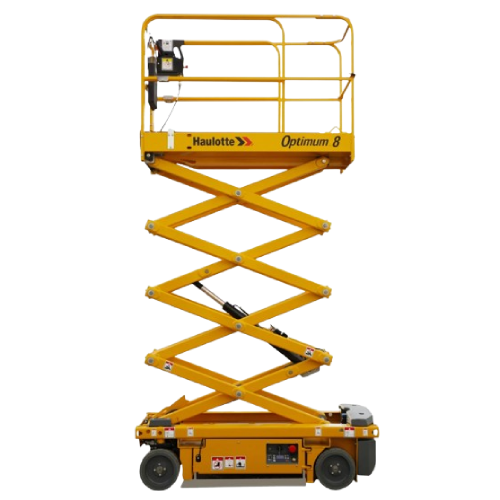

Haulotte Optimum 8

The Haulotte Optimum 8 electric scissor lift is an ultra-compact scissor lift that delivers exceptional performance and productivity. Thanks to its asynchronous AC motor, the Optimum 8 delivers precise and smooth proportional movements. Combined with its narrow 1.50 metre turning circle, operators can easily and safely manoeuvre through the most difficult workspaces.

Specifications

	OPTIMUM 8
Working height	7.77 m
Platform height	5.77 m
Lift capacity	230 kg
Platform length – outside	1.72 m
Platform length – extended	2.58 m
Length – extension	0.86 m
Platform width – outside	0.74 m
Height – stowed	1.98 m
Overall width	0.79 m
Length	1.9 m
Wheelbase	1.38 m
Ground clearance – Centre	8.7 cm
Ground clearance – Deployed potholes	2 cm
Drive speed	0.5 – 4.5 km/h
Driveable at full height up to	5.77 m
Gradeability	25 %
Tilt	1.5° – 3°
Lift / lower speed	20 s / 29 s
Turning radius – outside	1.50 m
Non-marking tires	12.5 × 4.13

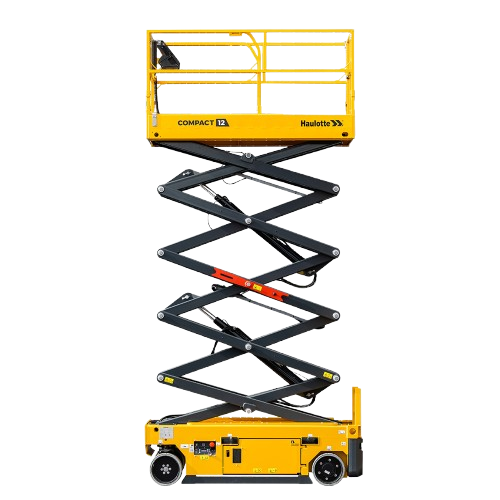

Haulotte Compact 10-12-14

The Haulotte Compact 10, 12 and 14 are reliable, high performance scissor lifts that provide a range of features that are unmatched in their class. Ideal for both indoor and outdoor applications, these scissor lifts will provide stable, reliable access to working heights of 10 to 14 metres. The compact, robust design ensures maximum durability and performance in a wide range of environments.

Specifications

	COMPACT 10	COMPACT 12	COMPACT 14
Working height	10.0 m	11.75 m	13.75 m
Platform height	8.0 m	9.75 m	11.75 m
Max. drive working height	8.0 m	9.75 m	11.75 m
Lift capacity – inside	450 kg	320 kg	320 kg
Lift capacity – outside	450 kg	320 kg	N/A
Lift capacity on the extension deck	120 kg	120 kg	120 kg
Platform length – outside	2.40 m	2.40 m	2.40 m
Platform length – extended	3.32 m	3.32 m	3.32 m
Length – extension	0.92 m	0.92 m	0.92 m
Platform width – outside	1.17 m	1.17 m	1.17 m
Height – stowed	2.35 m	2.47 m	2.72 m
Guardrails lowered	1.65 m	1.77 m	2.02 m
Overall width	1.20 m	1.20 m	1.20 m
Length	2.50 m	2.50 m	1.86 m
Ground clearance – deployed potholes	2.0 cm	2.0 cm	2.0 cm
Drive speed	0.7 / 1.5 / 4.2 km/h	0.7 / 1.5 / 4.2 km/h	0.7 / 1.5 / 4.2 km/h
Gradeability	25 %	25 %	25 %
Tilt (longitudinal / lateral)	3.5° / 1.5°	3.5° / 1.5°	3.5° / 1.5°
Turning radius – outside	1.83 m	1.83 m	1.83 m
Non-marking tyres	15 x 5	15 x 5	15 x 5
Batteries	24 V – 225 Ah (C20)	24 V – 225 Ah (C20)	24 V – 225 Ah (C20)
Hydraulic system capacity	10 L	14 L	14 L
Weight	2490 kg	2940 kg	3070 kg

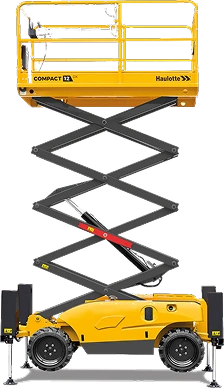

Haulotte diesel all terrain 10-12

The 10-12 DX series are high performance, compact scissor lifts that offer exceptional productivity and performance for outdoor applications. The scissor lifts’ high-performance outriggers, ground clearance of 27cm, and automatic hydraulic differential lock allow them to operate effectively on difficult terrain.

Specifications

	COMPACT 10 DX	COMPACT 12 DX
Working height	10.15 m	12.15 m
Platform height	8.15 m	10.15 m
Lift capacity	565 kg	450 kg
Length	3.17 m	3.17 m
Width	1.80 m	1.80 m
Height – stowed	2.43 m	2.55 m
Storage height	1.57 m	1.70 m
Platform length	2.50 m	2.50 m
Extended platform length	3.70 m	3.70 m
Platform extensions length	1.20 m	1.20 m
Platform width	1.54 m	1.54 m
Wheelbase	1.87 m	1.87 m
Ground clearance	27 cm	27 cm
Number of extensions	1	1
Drive speed	0.8 – 5.5 km/h	0.8 – 5.5 km/h
Turning radius – outside	3.5 m	3.5 m
Lift / lower speed	35 s / 46 s	40 s / 51 s
Engine	18.5 kW – 24.8 hp	18.5 kW – 24.8 hp
Gradeability	40 %	40 %
Hydraulic system capacity	26 × 12 – 16.5	26 × 12 – 16.5
Hydraulic system capacity	75 l	75 l
Weight	3440 kg	4060 kg

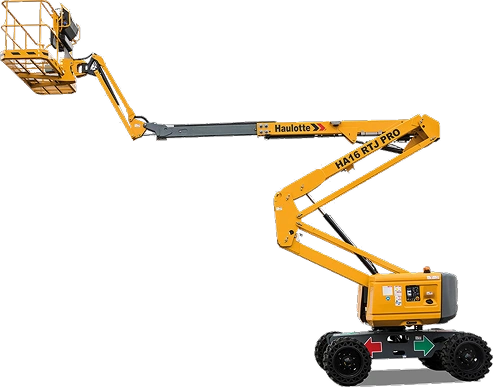

Haulotte HA16 RTJ PRO

The Haulotte HA16 RTJ PRO diesel articulating boom lift delivers exceptional productivity with its industry leading working envelope. Offering a horizontal outreach of 8.30 metres, as well as the best lifting speed of 40 seconds to full height, the HA16 RTJ PRO makes the most of every minute with its fast, efficient motion. Not only does this machine stand out for its speed and outreach, but it is also known for its low noise levels.

Specifications

	HA16 RTJ PRO
Working height	16.0 m
Platform height	14.0 m
Horizontal outreach	8.30 m
Up and over clearance	7.65 m
Lift capacity	230 kg
Platform size	1.83 x 0.80 m
Length – stowed	6.75 m
Width	5.05 m
Height – stowed	2.30 m
Vertical jib rotation	2.40 m
Platform rotation	165° (-75° / +90°)
Turntable rotation	360° continuous
Tailswing	10 cm
Wheelbase	2.10 cm
Ground clearance	38 cm
Tilt	5°
Drive speed	5.2 km / h
Gradeability	40%
Turning radius – outside	3.75 m
Tyres – solid rough terrain	850 x 340 mm
Power source	Kubota, 18.5 kW (Stage 5 in EU) Kubota, 26.5 kW (Stage 3A in NRC)
Weight	6650 kg

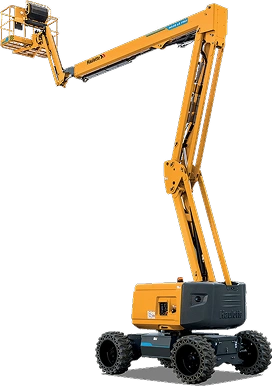

Haulotte HA20 LE Pro

The HA20 LE PRO is one of the first of the PULSEO product range, an all-terrain electric articulating boom lift that has a platform height of 18.76 metres and a horizontal outreach of 11.91 metres. The HA20 LE PRO has amazing driveability with independent 4-wheel drive with each wheel producing powerful torque and ensuring excellent traction distribution.

Specifications

	HA20 LE PRO
Working height	20.76 m
Platform height	18.76 m
Horizontal outreach	11.91 m
Up and over clearance	8.52 m
Lift capacity	250 kg – option 350 kg
Platform size	1.83 x 0.80 m
Length	8.54 m
Width	2.41 m
Height – stowed	2.50 m
Length – storage / transport	6.19 m
Height – storage / transport	3.0 m
Platform rotation	180 ° (+ 90° / – 90°)
Turntable rotation	360 ° continuous
Tailswing	41 cm
Wheelbase	2.5 cm
Ground clearance	46 cm
Tilt	4 °
Proportional drive speed	0.7 – 5 km/h
Gradeability	45 %
Tyres – solid rough terrain	1025 x 365 mm
Turning radius – outside	3.70 m
Weight	9785 kg
Batteries	12 x 6 V – 435 Ah (C20)
Range extender	Kubota, 18.5kW

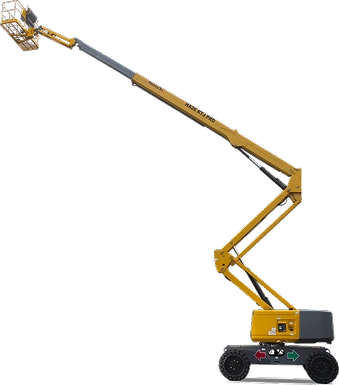

Haulotte HA26 RTJ PRO

The Haulotte HA26 RTJ PRO diesel articulated boom lift makes no compromises in terms of operator safety, productivity, ease of maintenance and total cost of ownership. This modern boom lift delivers both quick and smooth proportional and simultaneous movements. It also offers a best in class working envelope thanks to its 24.4 metre platform height, 9.30 metre up-and-over clearance and 17.50 metre horizontal outreach. The boom also includes continuous 360-degree rotational movements which boosts productivity.

Specifications

	HA26 RTJ PRO
Working height	26.4 m
Platform height	24.4 m
Horizontal outreach	17.5 m
Up and over clearance	9.30 m
Lift capacity	250 kg – option 350 kg
Platform size	2.44 x 0.91 m
Length – stowed	11.80 m
Width	2.48 m
Height – stowed	2.97 m
Storage / transport length	9.40 m
Storage / transport height	2.98 m
Platform rotation	180°
Vertical jib rotation	133° (-65° / +68°)
Turntable rotation	360° continuous
Tailswing	0.76 m
Wheelbase	2.80 m
Ground clearance	48 cm
Tilt	4°
Drive speed	5 km/h
Maximum wind speed rating	45 km/h
Gradeability	45%
Turning radius – outside	4.35 m
Tyres – solid rough terrain	1025 x 365 mm
Power source	Kubota, 36.5 kW (49.6 hp)
Weight	15,500 kg

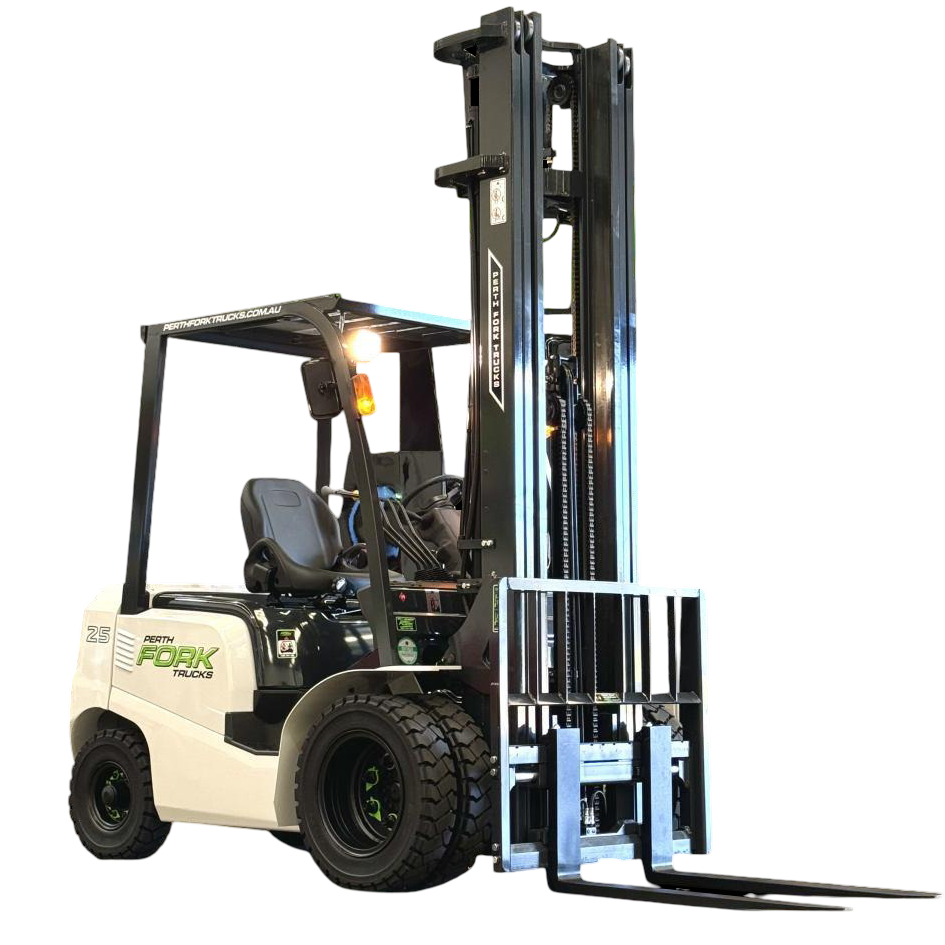

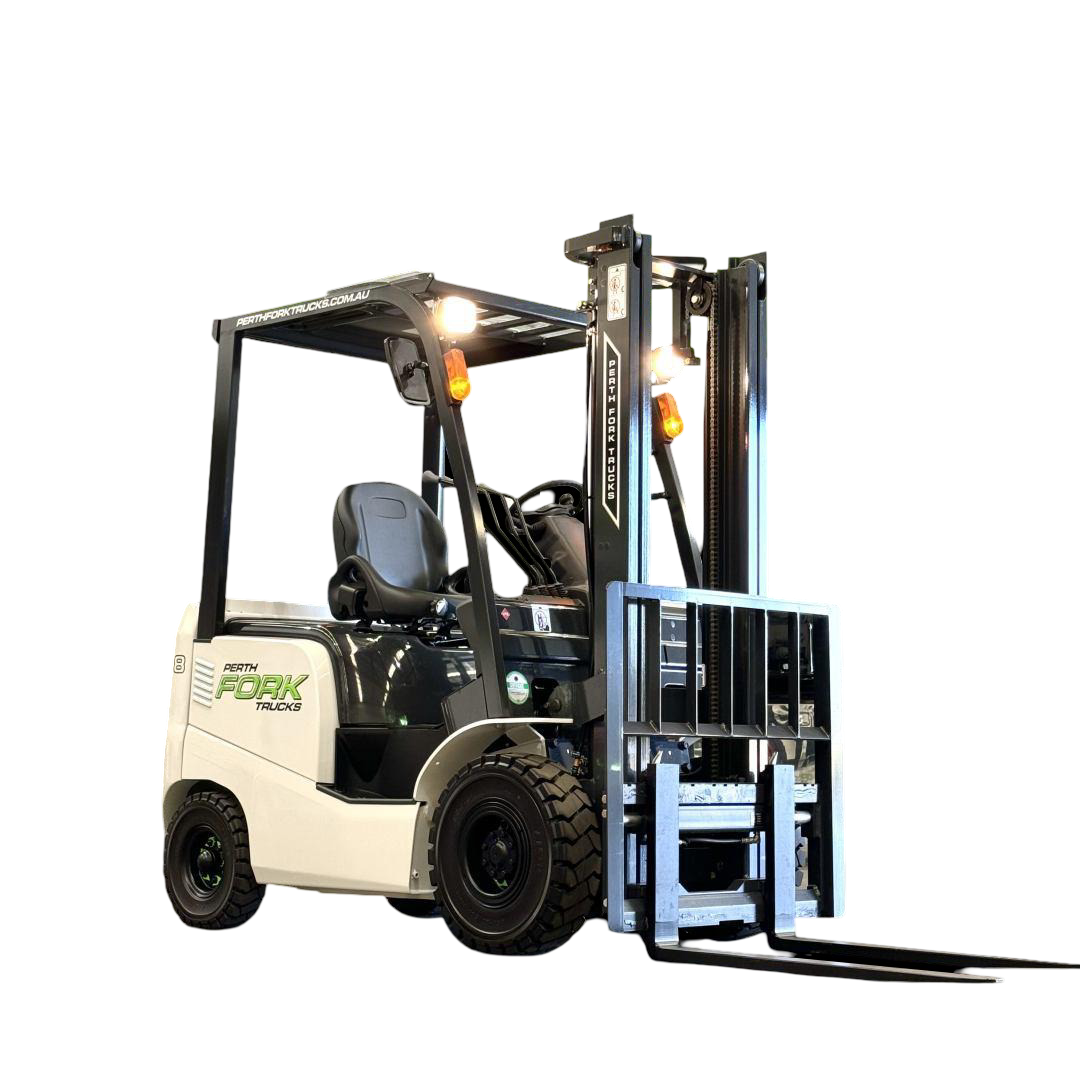

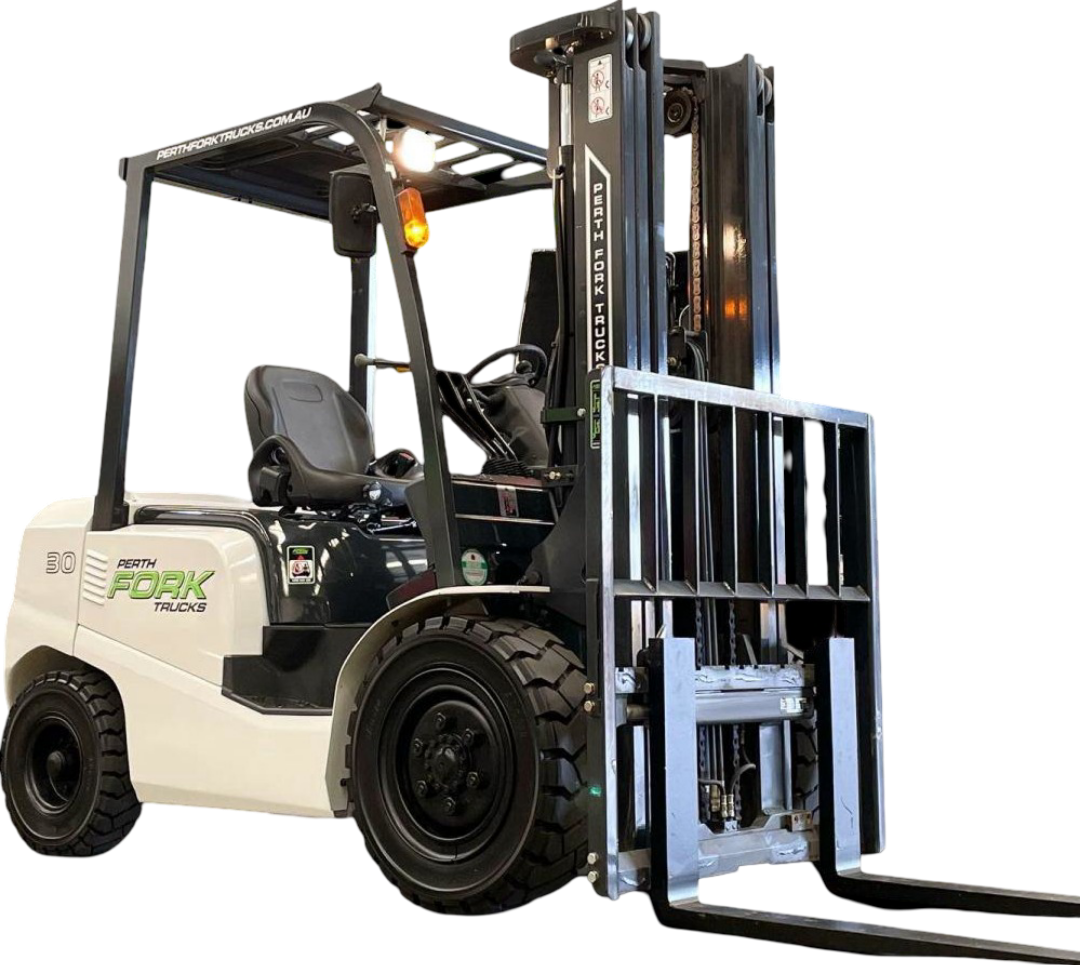

forklifts

With a comprehensive range of forklifts and accessories to assist with your materials handling needs, Atlas Plant Hire offers safety and reliability you can count on.
